How to Measure a Box and Pad

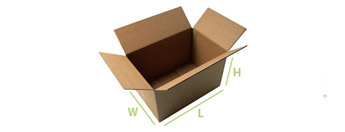

Box Diagram

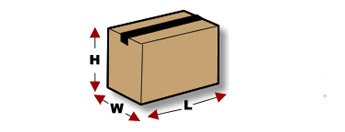

Measuring Boxes

Measuring a box is as easy as 1-2-3 – L x W x H. Standard corrugated box dimensions are always read in this sequence.

When measuring the size, dimensions should always correspond to the inner dimensions of the box. The length is always the longest side along the opening. The width will be the shorter side of the opening, and height is the distance between the top and bottom of the box. When measuring a corrugated pad, the width can be determined by measuring in the direction of corrugation, and the opposite will be the length.

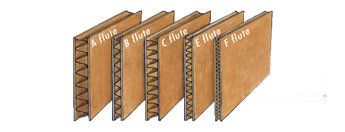

Flutes are the wavy, arched material found between corrugated liners. Several flute types are available to best fit a customer’s specifications.

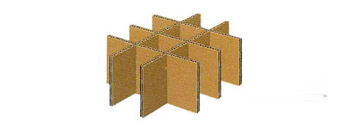

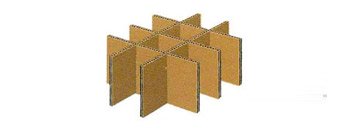

Box partitions are designed for customers who ship various fragile items such as glasses, medical equipment, candles, or any other item that could Potentially become damaged if shifted during shipping.

Types of boxes we offer

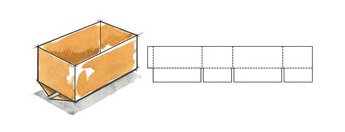

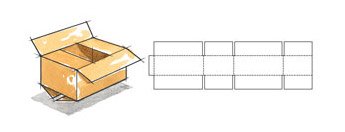

0200 Half Slotted Container (HSC)		0201 Regular Slotted Container (RSC)

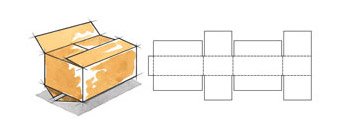

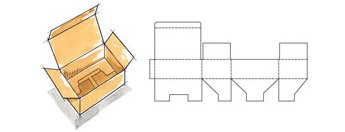

0204 Center Special Slotted Container (CSSC)		0215 Snap or 1-2-3 Bottom Container with Tuck Top

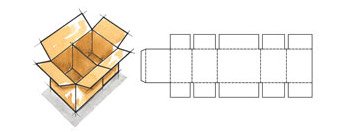

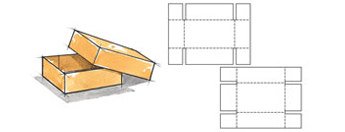

0228 Integral Divider Container, RSC with Internal Divider or Self Divider		0301 Full Telescope Design Style Container (FTD)

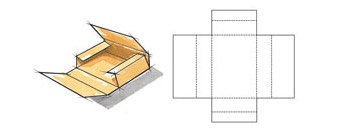

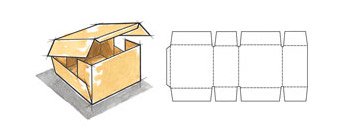

0401 One Piece Folder (OPF)		0406 Wrap Around Blank

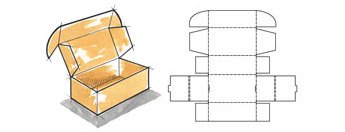

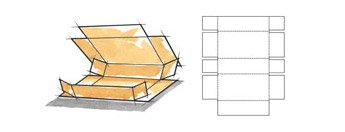

Five Panel Folder (FPF) or Harness Style Five Panel Folder		0427 Rock End Tray with Locking Cover

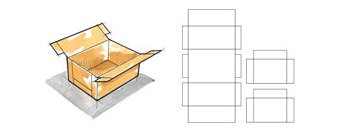

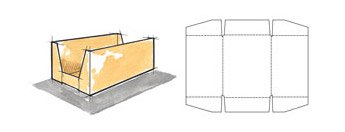

0460 Display Tray or High Wall Tray		0606 A Bliss Style Container

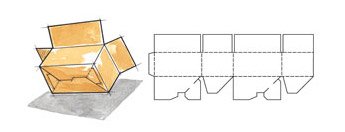

0760 Self-Erecting Six Corner Tray		0711 Pre-Glued Auto Bottom with RSC Top Flap
